Yumurta Şekilli Tıkama Balonları UV, UVP

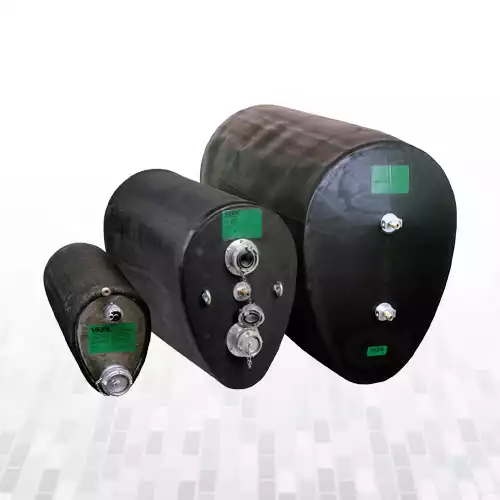

These pipe stoppers are used for sealing of egg-shaped sections.
These pipe stoppers are used for sealing egg–shaped sections and they are also suitable for the use in leak tests with water or air. These stoppers are manufactured in two forms. The forms that copy the shape of the pipe and the cushion-shaped forms. The former ones are commonly used for smaller sections while the latter are suitable for larger sections because they can by install to sewerages through the standard gullies. The standard product line consists of five models each of different size.
| Type | UV 30/45 40/60 |
UV 50/75 60/90 |
UV 70/105 90/135 |
UVP 50/75 60/90 |
UVP 70/105 90/135 |
|
|---|---|---|---|---|---|---|
| Part - No. | 1601 | 1602 | 1603 | 1604 | 1605 | |
| Sealing cross - section | mm | 300–400 450–600 |
500–600 750–900 |
700–900 1050–1350 |
500–600 750–900 |
700–900 1050–1350 |
| Operating pressure | bar | 1,0 | 1,0 | 1,0 | 1,0 | 1,0 |
| Test pressure | bar | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 |
| Back pressure | bar | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 |
| Dimensions (w x h x l) | mm | 270 x 380 x 800 | 470 x 690 x 1060 | 650 x 960 x 1360 | 700 x 2100 | 1000 x 2500 |
| Weight | kg | 10 | 35 | 52 | 18 | 26 |
