Kısa Tıkama Balonları UK

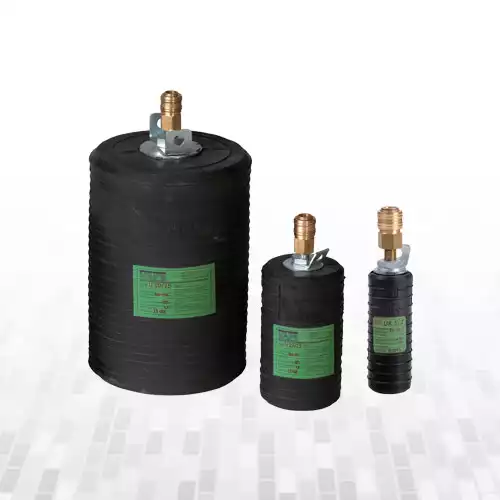

Due to their length, these pipe stoppers are especially suitable for sealing of house connections but they are often used for leak tests. The short pipe stoppers are made of top-quality rubber and their metal parts are made of stainless materials. The diameter of the standard product line ranges from 50 to 300 millimetres.
| Type | UK 5/7 | UK 7/10 | UK 10 | UK 10/15 | UK 11/17 | UK 15 | UK 15/20 | UK 20 | UK 20/25 | UK 25/30 | UK 30/40 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part - No. | 1404 | 1411 | 1401 | 1406 | 1416 | 1402 | 1409 | 1403 | 1410 | 1407 | 1418 | |
| Pipe diameter | mm | 50–70 | 70–100 | 100 | 100–150 | 110-170 | 150 | 150–200 | 200 | 200–250 | 250–300 | 300-400 |
| Operating pressure | bar | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Test pressure | bar | 3,3 | 3,3 | 3,3 | 3,3 | 3,3 | 3,3 | 3,3 | 3,3 | 3,3 | 3,3 | 3,3 |
| Back pressure | bar | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 |
| Diameter | mm | 46 | 67 | 90 | 90 | 100 | 140 | 140 | 180 | 180 | 240 | 290 |
| Cylinder length | mm | 125 | 130 | 160 | 160 | 180 | 220 | 220 | 260 | 260 | 290 | 270 |
| Total length | mm | 180 | 185 | 220 | 220 | 240 | 280 | 280 | 320 | 320 | 350 | 330 |
| Weight | kg | 0,3 | 0,4 | 0,6 | 0,7 | 0,9 | 1,2 | 1,3 | 2,3 | 2,4 | 4,2 | 5,7 |
