Kanallar için Test Tıkama Balonları US

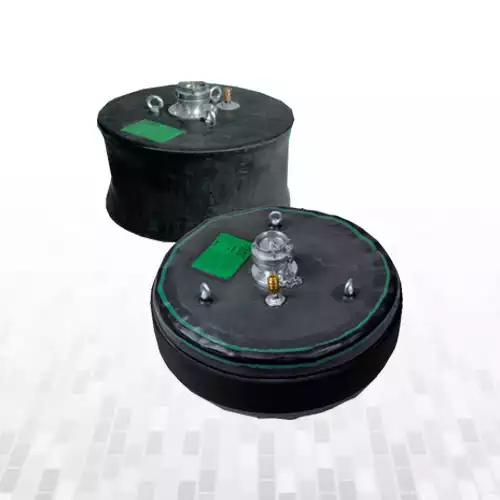

This short, light and easy-to-handle stopper is used for leak tests of standard gullies with air or water according to DIN EN 1610.
These short, light and easy-to-handle stoppers are used for leak tests of standard gullies using water or air as the testing medium according to DIN EN 1610. The accessories are identical with common pipe stoppers. If required, we are able to manufacture the stopper of a different shape or size. They are standard and light – L.
| Type | US 60/65 | US 60/65 L | US 80/85 L | US 100/105 L | |
|---|---|---|---|---|---|
| Part - No. | 9028 | 9038 | 9116 | 9117 | |
| Pipe diameter | mm | 600–650 | 600–650 | 800–850 | 1000–1050 |
| Operating pressure | bar | 1,5 | 1,0 | 1,0 | 1,0 |
| Diameter | mm | 560 | 580 | 780 | 980 |
| Cylinder length | mm | 300 | 200 | 200 | 200 |
| Weight | kg | 19 | 4,9 | 7,2 | 10 |
| Bypass | 2“ | 2“ | 2“ | 2“ |
