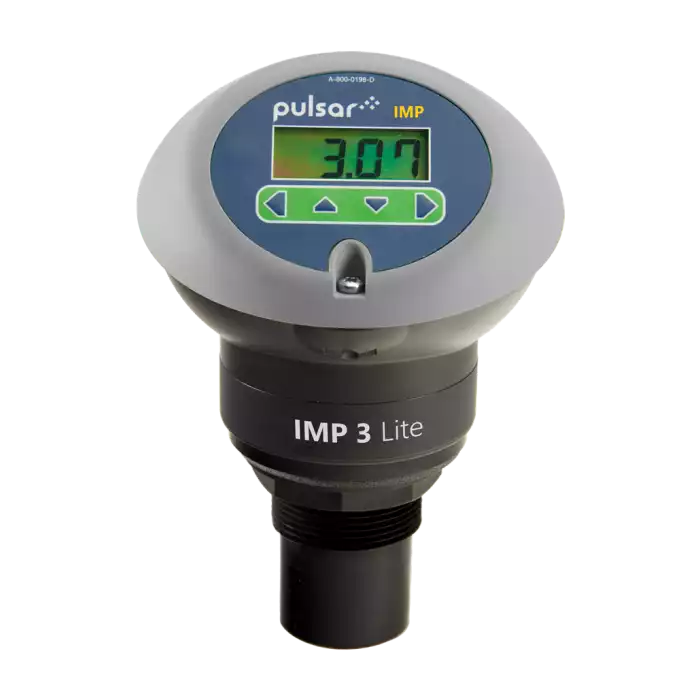

IMP Lite Seviye Transmitteri

  • Kompakt bağımsız seviye ölçümü
  • 2 kablolu yapılandırma
  • RJ11 bağlantı noktası
  • 10 m’ye (33 ft) kadar aralık mevcuttur

IMP Lite is designed to be a lower-cost alternative to the IMP+ and can be used wherever you need a reliable, non-contacting level measurement. The unique built-in digital echo processing software means that IMP Lite is perfect for slurries or liquids and those applications where you need an onboard display telling you the level, or analog output to integrate with your site control system to drive a display.

The IMP Lite is compact and low-profile, when used on battery power for intermittent (wake-up) applications, it’s high-speed boot up of circa 3 seconds maximizes battery life. Active and passive (sourcing and sinking) analog outputs assist with system integration, especially when retrofitting the unit into older installations. Pulsar PC Suite is optional software that adds to the capabilities of the IMP Lite and allows users to download and analyze data, store echo profiles, program IMP Lite parameters, update the unit, and provides a flow curve to be able to configure level to flow linearisation.

• Tank Seviyesi Uygulamaları
• Kimyasal Dozajlama
• Basit Seviye Göstergesi
• Açık ve Kapalı Gemi Seviyesi
• Katı Madde Seviyesi Göstergesi

General Specifications
Spec: Description:
Dimensions 175 mm (6.9 in) H x 130 mm (5.12 in) D
Cable entry 2 x 16 mm (0.63 in) cable glands, 3.5 mm to 10 mm (0.14 in to 0.39 in) cable diameter
Mounting IMP3 - 3 m (10 ft) version: 1.5 in BSP/NPT
IMP 6 - 6 m (20 ft) version: 1.5 in BSP/NPT
IMP10 - 10 m (33 ft) version: 2 in BSP/NPT
Suits BSP & NPT, parallel and tapered
Weight Approximately 1 kg (2.2 lbs)
Temperature (Process) -40 °C to 80 °C (-40 °F to 176 °F)
Temperature (Ambient) -20 °C to 65 °C (-4 °F to 149 °F)
Input Voltage 11-30 V, 3.5-22 mA
Accuracy ±0.25% or 6 mm (0.24 in); whichever is greater
Resolution ±0.1% or 2 mm (0.08 in); whichever is greater
Options
Option: Description:
Variants Imp+
IMP I.S.
Beam Angle (-3 dB half power) IMP3: ‹10° inclusive
IMP6: ‹10° inclusive
IMP10: ‹10° inclusive
Operating Frequency IMP3: 125 kHz
IMP6: 75 kHz
IMP10: 41 kHz
Measurement Range IMP3: 0.2 m to 3 m (0.66 ft to 10 ft)
IMP6: 0.3 m to 6 m (0.98 ft to 20 ft)
IMP10: 0.3 m to 10 m (0.98 ft to 33 ft)
Software IMP PC

Onaylar

  • IP67

Su

Atıksu

Yiyecek

Petrokimya

İçecek

Petrol & Gaz

Enerji

Kağıt

×
