FlowPulse Mobil Akış Ölçer, Kontrolör

  • Kompakt, mobil kontrolör
  • Şarj edilebilir pil veya şebekeden besleme
  • IP65 polikarbonat gövde
  • Dahili veri kaydı ve USB veri indirme, kolay sensör programlaması sağlar
  • 3,2 inç renkli TFT ekran
  • Yumuşak tuş takımı
  • Tek şarjla 5 saate kadar sürekli çalışma

FlowPulse Mobil Akış Ölçer, Kontrolör:

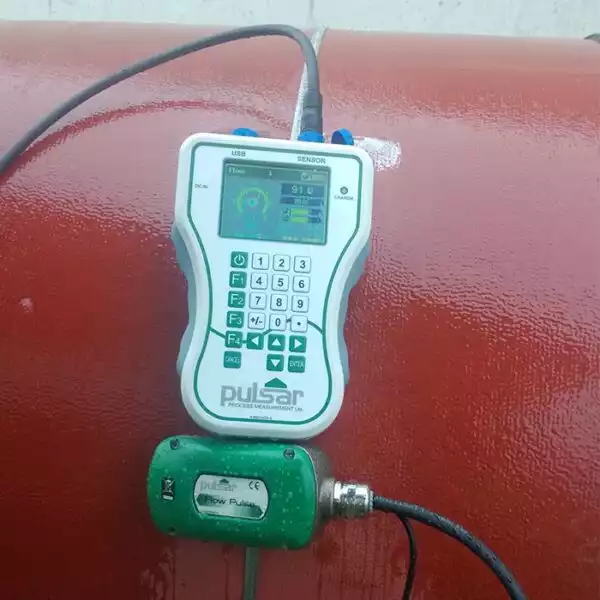

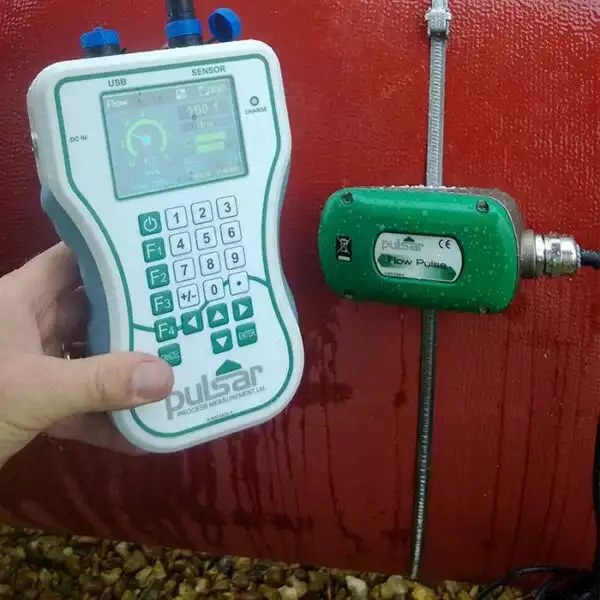

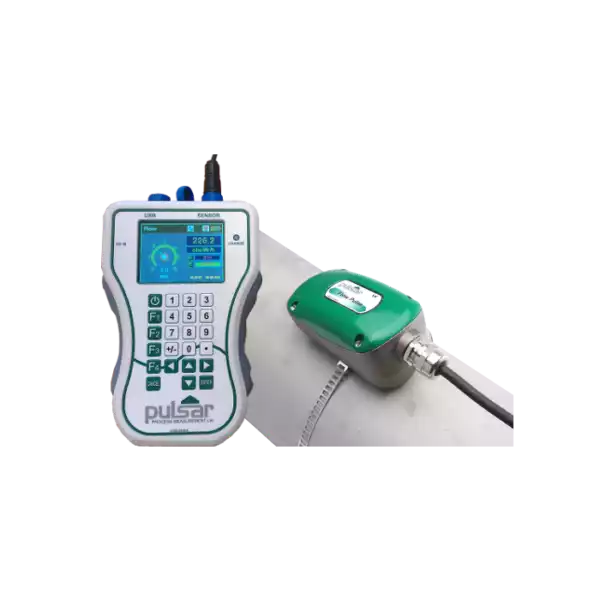

FlowPulse HandHeld controller is an optional mobile controller that provides portable flow monitoring when combined with the Sensor, offering a toolset that allows programming, monitoring, and data acquisition. The unit connects to pre-installed sensors or operates as a self-contained kit, with instant feedback via its color screen.

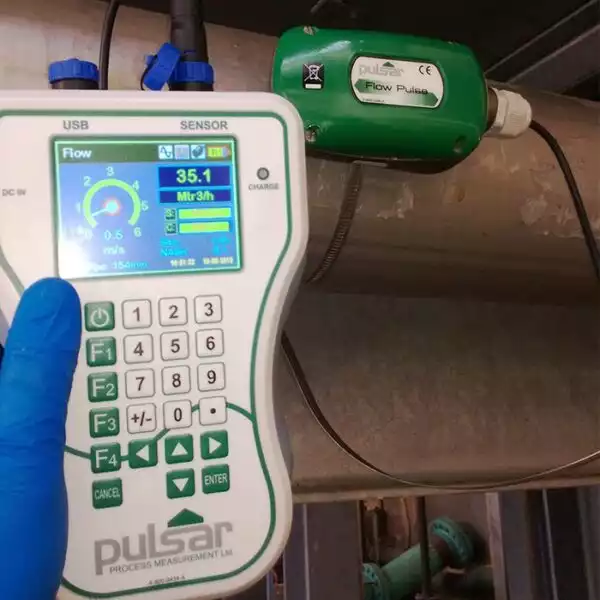

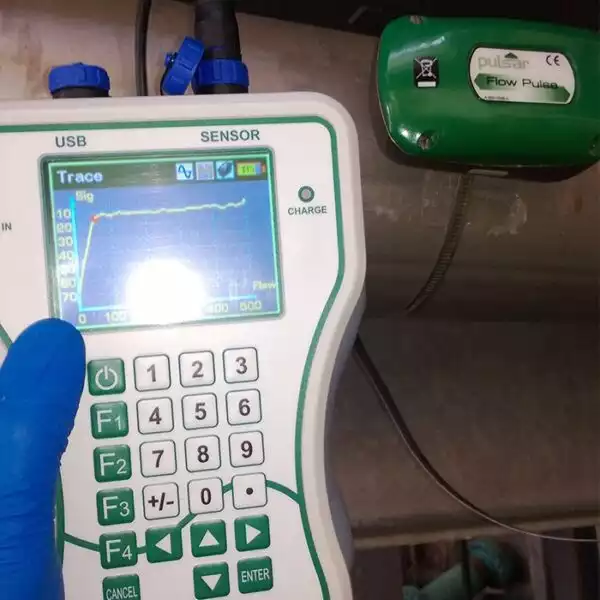

The controller allows the operator to view traces and recorded data files, as well as loading and saving parameter files. Over 3 GB of on-board memory provides storage for nearly a year’s worth of data (around 120 days with traces) at 10-second recording intervals. The sleep/wake-up function allows for extended logging, with data able to be downloaded via USB to Pulsar FlowPulse PC Software and .csv file for further analysis.

The is available as a stand-alone unit to use with existing sensors or can be purchased as a complete kit with FlowPulse and a convenient carry case, complete with mains or battery operation, with an in-car charger.

• Identify Inefficient Pumps & Underperforming Assets
• Identify Faulty Non-return Valves
• Record Flow for Analysis & Comparison
• Monitor Pump System Performance

General Specifications
Spec: Description:
Controller Body Dimensions: 210 mm x 125 mm x 50 mm (8.27 in x 4.92 in x 1.97 in)
Weight: 0.6 kg (1.3 lbs)
Enclosure Material: Polycarbonate UL94 V2 rated, with weather-proof connectors
Operating Temperature (Electronics): -20 °C to +60 °C (-4 °F to +140 °F)
Operating Temperature (Battery Charging): -20 °C to +40 °C (-4 °F to +104 °F)
Rechargeable Batttery: 11.1 V DC Li-ion cells
Battery Duration: 4 to 5 hours
Power Supply: 12-18 V DC
Power Consumption: 3.5 W at 12 V not charging, 15 W at 12 V when charging
Options
Option: Description:
FlowPulse Sensor Non-invasive flow sensor for the outside of a pipe
Flow Monitor For fixed and permanent installations

Onaylar

  • IP65 Polikarbonat gövde
  • CE

Su

Atıksu

Yiyecek

Petrokimya

İçecek

Petrol & Gaz

Enerji

Kağıt

×
