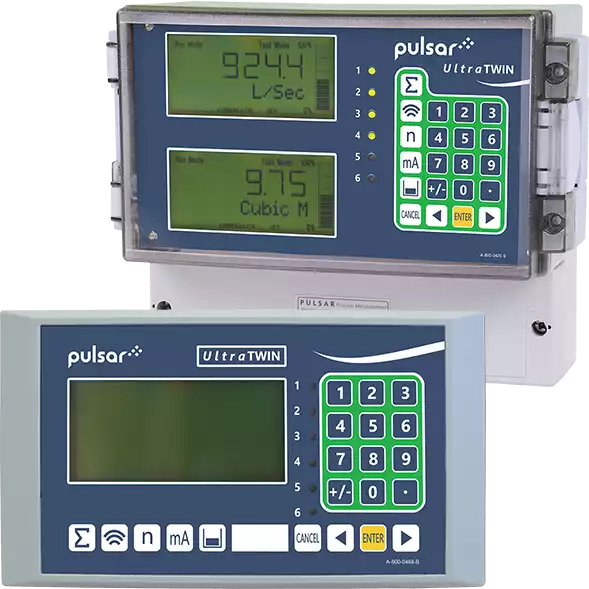

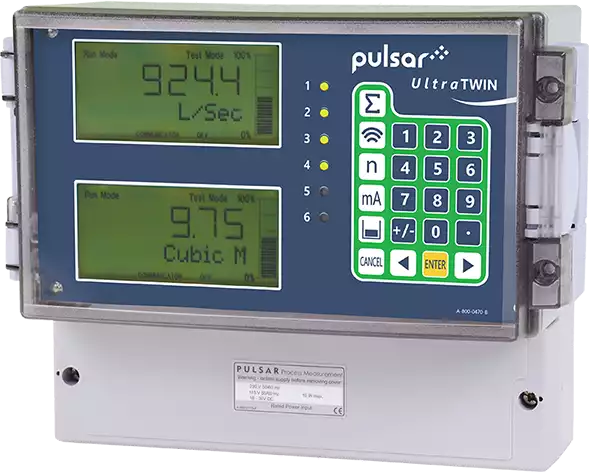

UltraTWIN Controller
- Dual channel measurement
- Wall or panel options
- 2 isolated outputs
- Data recording option
- Easy command prompt led installation
- 4 digital inputs assignable to other alarm functions
The UltraTWIN offers an opportunity to combine ultrasonic level/volume monitoring, pump control, or open channel flow measurement in a 2-channel ultrasonic system. Each channel is user-configurable to operate independently either as a full-function open channel flow monitor – calculating flow rates, a pump control system, or as a level and volume monitoring unit for liquids or solids – calculating volumes and providing alarms.
A powerful data logging solution can be added to the UltraTWIN system, offering Pulsar’s PC Ultra Log Software which records and charts data and trends in an easily accessible form. The controller may also be upgraded to include RS485 communications, Modbus, or Profibus DPV0 or V1 protocols.
• Effluent Discharge Monitoring
• Shaft Tank Dual Chamber Measurement
• Dual Channel Monitoring
• Screen House Monitoring
• Sophisticated Pump Control
| General Specifications | |
|---|---|
| Spec: | Description: |
| Weight | 1 kg (2.2 lbs) |
| Cable Entry Details | 10 cable entries, 1 x M16, 5 x M20 underside, 4 x PG11 at rear |
| IP Rating | IP64 & 65 |
| Operating Temperature (Electronics) | -20°C to +50°C (-4°F to +122°F) |
| Analog Output | 2 x Isolated output 4-20mA or 0-20mA into 500 Ω (user programmable and adjustable), 0.1% resolution |
| Digital Outputs | Full duplex RS232 via RJ11 port |
| Digital Inputs | Wall = 4, Fascia = 7, normally open or normally closed, 24 V DC supply |
| Power Supply | 115 V AC +5%/-10% 50/60 Hz, 230 V AC +5%/-10%, 18-30 V DC |
| Volt Free Contacts | 6 form C (SPDT) 5 A, 240 V AC |
| Display | 6-digits plus 12 character text, bar graph with direction indicators, remote communicator identifier, and program/run/test mode indicators |
| Options | |
|---|---|
| Option: | Description: |
| Mounting | Standard Wall Mount |
| Data logging | SD Data Card logger |
| Communications | RS485 Modbus &
Data logging option |
Approvals
- IP64 & 65
- CE
- UL
