Ultrasonic Thickness Gauge AT300

  • Two different measurement methods: “Single” and “Scan”
  • Single mode: measured value at just the touch point.
  • Scan mode: measure the minimum point in a specific area.
  • Range: 0.75 … 300 mm
  • 20 different file recording (99 admissions per file)

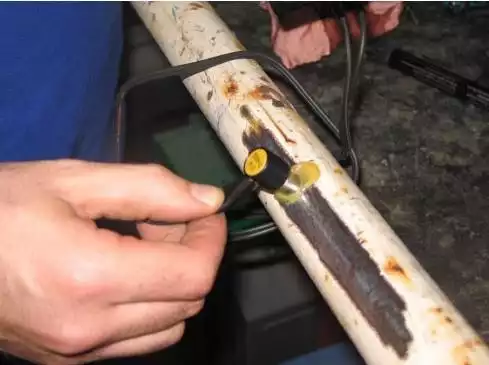

AT 300, using ultrasonic waves have been designed to measure the thickness of metallic and non-metallic materials.

It can measure different materials in many industrial fields ; Raw materials, components and machined parts. Additional pipes that may be of almost any type of thickness loss caused by corrosion can be used for monitoring pressure tank.

  • Two different measurement methods: “Single” and “Scan”
  • Single mode: measured value at just the touch point.
  • Scan mode: measure the minimum point in a specific area.
  • Range: 0.75 … 300 mm
  • 20 different file recording (99 admissions per file)
  • Iron and Steel Industry
  • Plastic Industry
  • Ceramic and Glass Industries
  • Automobile Industry
  • Machinery Industry
  • Display: 4.5 digit LCD with backlit
  • Measuring range: 0.75….. 300 mm
  • Sound speed: 1000-9999 m/sec
  • Resolution: 0.1/0.01 mm
  • Accuracy: ±( % 0.5 thickness + 0.04) mm
  • Temperature range: -10...60°C
  • Test Frequency: Single mode 4 readings per minute, Scan mode 10 readings per minute
  • Calibration: 4.00 mm steel plate
  • Recording capacity: 20 record different file (99 records each file)
  • Mode: Single Mode & Scan Mode
  • Interface: Optional RS232, mini-printer
  • Units: Metric / inch
  • Power supply: 3 V (2xAA Batteries)
  • Dimensions: 150 x 74 x32 mm
  • Weight: 245 g
