Ultrasonic Flowmeter AFLO-TT
Non-contact measurement with sensors clamped outside the pipe
Flow measurement in pipes DN15…DN6000
4-20 mA, Pulse, Relay outputs and MODBUS communication
Can be used as a calorimeter with Pt-100 inputs
- For all clean liquids
- Measurement in pipes up to DN6000
- Precise measurement from outside the pipe
Application Areas:
- Water & Wastewater
- Drinking Water
- River Water
- Coolant
- Demineralized Water
- Crude Oil
- Mineral Oil
- Hydroelectric, Fire Extinguishing Stations
- Food, Beverage Industry
- Flow Balancing
- Glycol solution
- Hydraulic Oil
- Diesel & Fuel Oil
- Chemicals
- Petrochemicals
- Heating and Cooling Systems
- Fire suppression systems
- Water & Wastewater
- Drinking water
- River Water
- Cooling Water
- Demineralized Water
- Crude oil
- Mineral oil
- Hydroelectric, Fire Extinguishing Stations
- Food, Beverage Industry
- Flow Balancing
- Glycol Solution
- Hydraulic oil
- Diesel & Fuel Oil
- chemicals
- petrochemicals
- Heating and cooling systems
Transmitter Features
- Operation: Up to 2% suspended solids and air bubbles in full-breath pipes for clean liquids
- Display: 128x64 dot matrix LCD
- Sensitivity: 0.003 m/s
- Sensitivity: 1%
- Linearity:%±0.5
- Repeatability: %±0.2
- Power Source: 85-265 VAC or 24 VDC
- Çoutputs: 4-20 mA, Pulse and Relay
- Communication: ModBUS via RS485
- Temperature: -20...60°C
- Protection: IP65

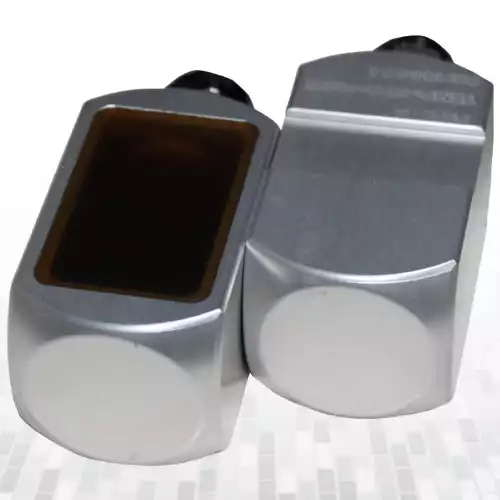

Sensors
- Working Range: S(20-50 mm), M(40-1000 mm), L(1000-6000 mm)
- Pipe Materials: Made of metal or plastic materials that transmit ultrasonic sound (Carbon Steel, Stainless Steel, Cast Iron, Dactyl Iron, Copper, Brass, Aluminum, PVC, PVDF, Fiberglass, HDPE, Teflon, Rubber...etc)
- Mounting Kit: Mounting Clamps and Acoustic bonding gel
- Temperature: -20...85°C
- Protection: IP67, Optional IP68
