Ultimate Controller Level/Flow
- 2 x 4-20mA inputs (passive or active)
- 2 x isolated mA outputs
- ethernet
- Camera Port

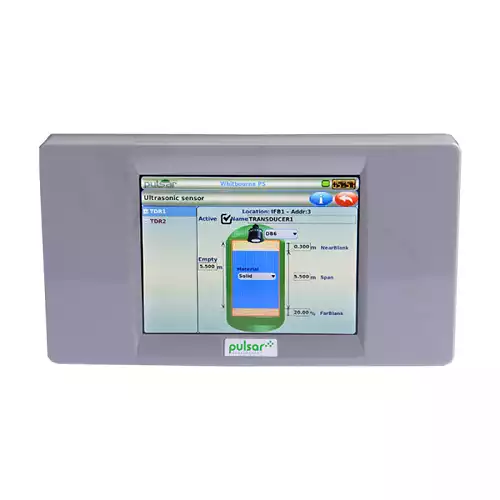

- Touch screen
- 2 x dB Converter Inputs
- 8 relays (expandable)
- 8 digital inputs (expandable)
- Request a Quote

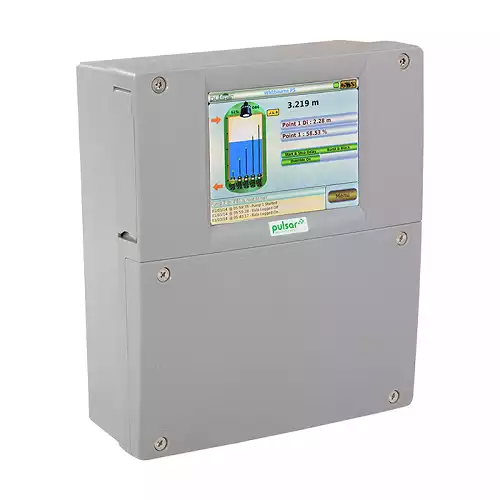

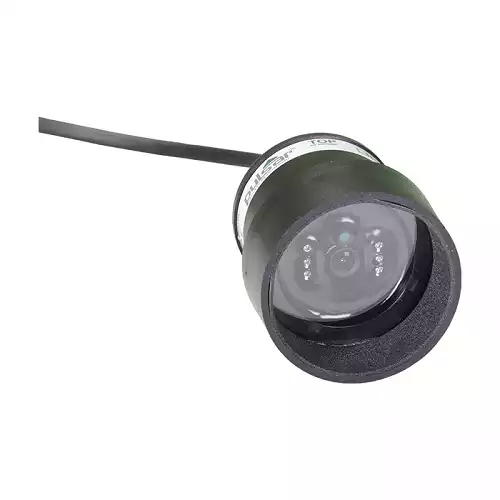

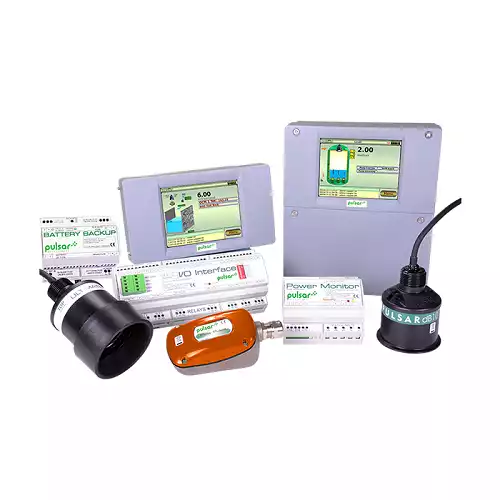

“The Ultimate controller is the perfect solution for small pump station control.” Ultimate is a control system that combines ultrasonic level, flow measurement, RTU and advanced pump control in an economical, easily programmable, modular unit with a dedicated web server remote control and touch-screen HMI with integrated WITS protocol. This unit is modular and expandable, with peripherals offering unlimited I/O, pump power monitoring, and even a remote infra-red camera allowing real-time viewing of your application. The Ultimate Controller is designed to offer the end-user end to end and operational cost savings by high energy cost avoidance, pre-blockage detection, automatic resets, and the selection of the most efficient pump. Capital cost saving by combining HMI, PLC, RTU, and level control with no costly logic programming.
• Advanced Pump Control
• Level Measurement
• Flow Monitoring
• Pump Performance Monitoring
• Asset Management
| General Specifications | |
|---|---|
| Spec: | Description: |
| Weight | Nominal 2 kg (4.4 lbs) |
| Cable entry detail | 11 total; 9 x M20 and 2 x M16 knockout underside |
| Connectivity | Mini USB (external), USB A Socket (internal), 'D' type 9 pin (internal), Camera Port (internal) |
| Protocol Supported | DNP3 Level 4, WITS Protocol 1.1 via Ethernet or mode (optional) Modbus RTU, TCP/IP (optional), Profibus V1 (optional), GSM/GPRS/PSTN, RS485 Pulsar expansion bus |
| Digital Inputs | 8 digital inputs, min input voltage 5 V DC, max input voltage, 30 V AC (max current 3 mA). 24 V DC input supply maximum total current 24 mA |
| Digital Outputs | 8 form C (SPDT), rated at 5 A at 240 V AC |
| Options | |
|---|---|
| Option: | Description: |
| Communications |
|
| Modem |
|
Approvals
- CE
- WITS DNP3 Protocol
- Explosive atmosphere approval when used with the Pulsar dB transducer series
