PDFM 5.1
- Clamp-on Ultrasonic Transducer
- Handheld Meter with large backlit LCD Display and Totalizer
- Internal Battery and/or AC Powered
- Built-in 5-Key Calibrator
- 300,000 point Data Logger
- USB Output and Windows software
- 4-20 mA Output
- Rugged, watertight Carry Case
The Greyline PDFM 5.1 is a Portable Doppler Flow Meter that simply clamps to the outside of a pipe to gain pipe flow measurement. Doppler technology means it is suitable for dirty or difficult liquids that contain bubbles or solids, like wastewater, slurries, sludge, chemicals, viscous liquids, and abrasives.

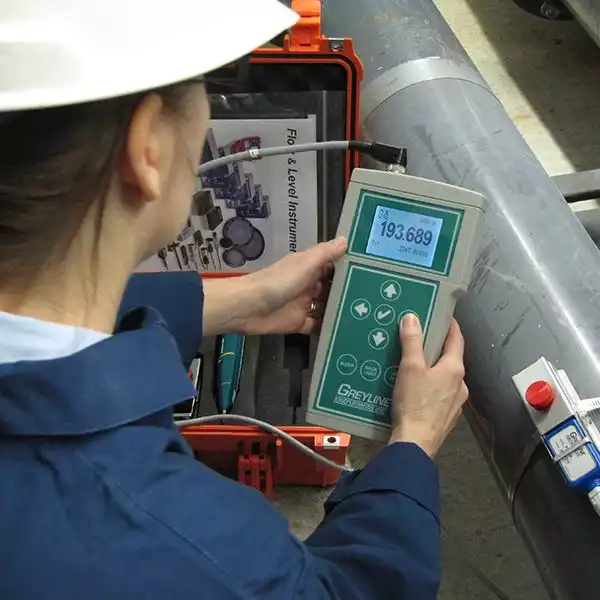

The PDFM5.1 portable Doppler flow meter is ideal for flow troubleshooting, balancing, and checking the performance of permanent flow meters. Fast and easy to operate, the sensor mounts to the outside of a pipe in less than a minute, using the built-in keypad and calibration menu to set up the flowmeter for the application.

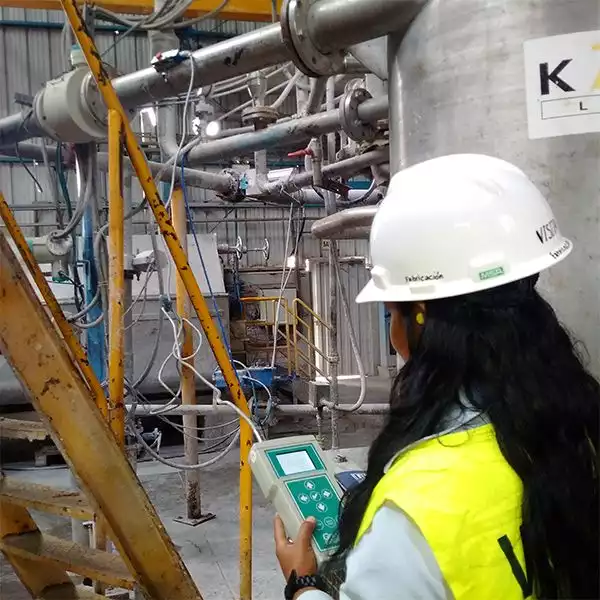

The unit is AC/DC powered with built-in NiMH batteries and an external charger. With its 4-20mA output, you can use the Greyline PDFM 5.1 as a spare pipe flow measurement unit in critical applications. Ideal applications for the PDFM 5.1 flowmeter with a non-contacting, clamp-on ultrasonic sensor include influent and effluent pipe flow, industrial pipe flows, irrigation flows, food and beverage manufacturers, pharmaceutical processes, and many more!
Gain a full overview of our pipe flow solutions by contacting one of our team today.
• Raw Sewage
• Aerated Water
• Return & Waste Sludge
• Slurries
• Viscous Liquids
• Pulp Stock
• Abrasives
| General Specifications | |
|---|---|
| Spec name: | Description: |
| Flow Rate Range | ±0.046 m/s to 12.2 m/s (±0.125 ft/s to 40 ft/s) in most applications |
| Flow Rate Range | Ultrasonic Sensor mounts on any pipe from 12.5 mm to 4.5 m (0.5 in to 180 in) ID |
| Display | White, backlit matrix - displays flow rate, totalizer, operating mode, and calibration menu |
| Power Input | Built-in NiMH battery for up to 18 hours continuous operation External charger with 100-240 V AC 50/60 Hz input |
| Outputs | 4-20 mA (500 ohms) when AC powered USB for Data Log transfer by direct PC connection |
| Data Logger | Programmable 300,000 data point capacity, time and date stamped or formatted flow reports including total, average, minimum, maximum, and times of occurrence |
| PC Software | 'Greyline Logger' for Windows Vista or higher. Retrieves, displays, and saves data log files |
| Operating Temperature (Electronics) | -23 °C to 60 °C (-10 °F to 140 °F) |
| Electronics Enclosure | Portable, ABS enclosure |
| Carry Case | Rated IP67 with protective molded foam insert |
| Accuracy | ±2% of reading or 0.03 m/s (0.1 ft/s). Requires solids or bubbles minimum size of 100 microns, minimum concentration 75 ppm. Repeatability: ±0.1%, Linearity ±0.5% |
| Calibration | Built-in 5-key programming with a user-friendly calibration menu. Password protected. |
| Language Selection | English, French, Spanish |
| Sensitivity | Adjustable cut-off, Damping: adjustable |
| Sensor Specifications | |
|---|---|
| Spec name: | Description: |
| Standard Model PSE4 | Clamp-on, single-head ultrasonic for pipes from 12.5 mm to 4.5 m (0.5 in to 180 in) ID with 3.4 m (12 ft) shielded dual-coaxial cable |
| Sensor Mounting Kit | Stainless steel pipe clamp and 150 g (5.3 oz) silicone coupling compound |
| Operating Temperature | -40 °C to 150 °C (-40 °F to 300 °F) |
Options:
Sensor Cable15 m (50 ft) sensor cable extension, shielded, with connectors
Sensor MountingExtra silicone coupling compound.
Additional stainless steel pipe clamps
