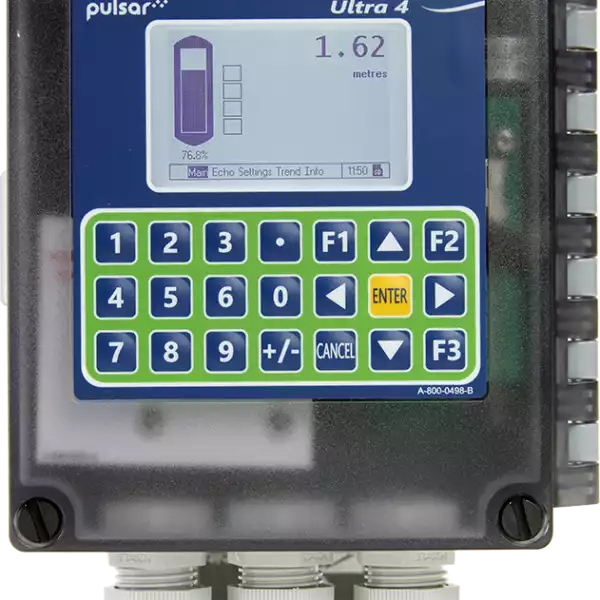

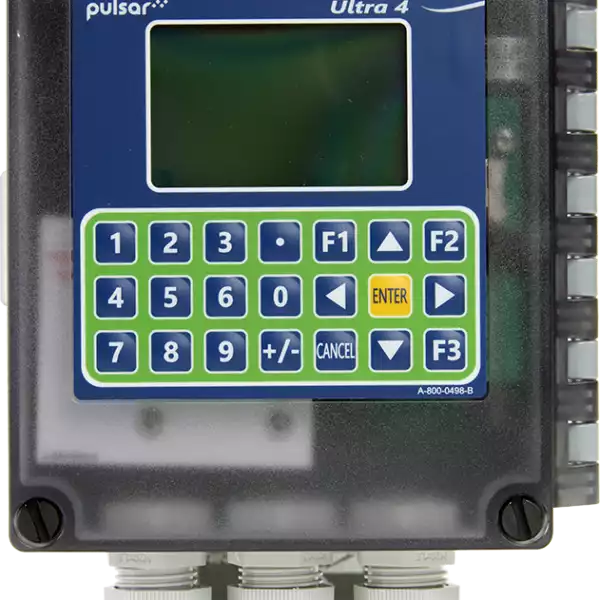

Open Channel Flowmeter Ultra 4
Ultrasonic, Level, Flow, Volume and Pump Control
- Built-in volume calculations from standard tank shapes or calibration curves
- 32GB Micro SD Card
- Reverb profiles and level trend graphs are displayed on the built-in display
- HART option
- RS485 Modbus/Profibus option
- Radar or Ultrasonic measurement possible
- 4 internal relays assignable by type
- Wall or Panel Mounting
- mA Output
- Pump control, flow measurement and volume measurement capability in one compact unit
- Quick setup features allow easy programming of parameters
Open Channel Flowmeter Ultra 4:
It provides users with highly comprehensive and advanced features for flow, flow and volume.
Suitable for liquids and solids, the open channel flow meter Ultra 4 has 4 relays assignable by type for high/low level alarms and/or pump on/off control.
The new multifunctional display allows for easy installation and configuration as well as on-screen trend monitoring with echo profiles and trend graphs viewable on the screen. The controller can be wall or dash mounted and includes HART, Profibus and Modbus digital communication options, with the built-in Micro SD card providing extended data logging.The unit includes advanced pump control and open channel flow measurement functions, as well as built-in volume calculations based on standard tank shapes.

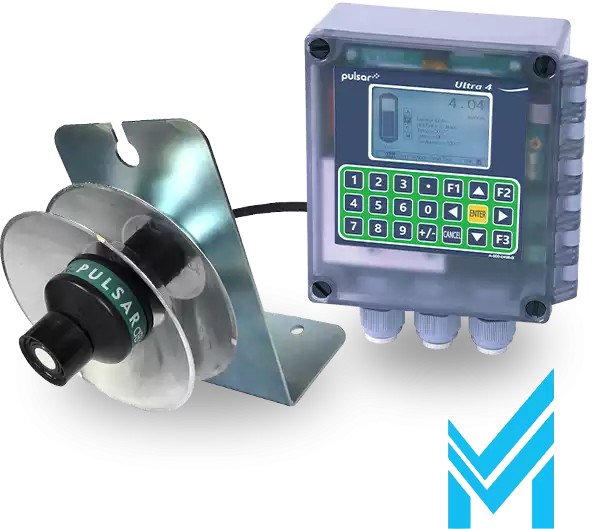

General Features: Level, Flow, Volume and Pump Control with ultrasonic or radar non-contact sensors
- Built-in volume calculations from standard tank shapes or calibration curves
- 32GB Micro SD Card
- Reverb profiles and level trend graphs are displayed on the built-in display
- HART option
- RS485 Modbus/Profibus option
- Radar or Ultrasonic measurement possible
- 4 internal relays assignable by type
- Wall or Panel Mounting
- mA Output
- Pump control, flow measurement and volume measurement capability in one compact unit
- Quick setup features allow easy programming of parameters
Scope of Application:
• Pump Control
• Open Channel Flow and Level
• Chemical Dosing
• IBC Tank Level
• Storage Tank Levels
• •CSO and Sewer Network Monitoring
| General Specifications | |
|---|---|
| Spec: | Description: |
| Weight: | 700g (1.5 lbs) |
| Dimensions: | Wall Mount: 150 mm x 130 mm x 63.5 mm (5.9 in x 5.1 in x 2.5 in) Fascia Mount: 160 mm x 180 mm x 63 mm (6.3 in x 7.07 in x 2.5 in) |
| Enclosure Material/Description: | Polycarbonate, flame resistant to UL94-V0 |
| Cable Entry Detail: | 3 x M20 glands |
| Transducer Cable Extensions: | 3-core Screened |
| IP Rating: | IP67/NEMA 4X for wall mount IP64 for fascia mount |
| Operating Temperature (Electronics): | -20 ºC to +45 ºC (-4 ºF to +113 ºF) |
| Accuracy: | 0.25% of the measured range or 6mm (whichever is greater) +/- 2 mm (0.079 in) for dBR16 mmWAVE RADAR |
| Resolution: | 0.1% of the measured range or 2 mm (0.079 in); whichever is greater |
| Analog Output: | Isolated floating output (to 150 V) of 4-20mA or 0-20mA into 1 kΩ; user-programmable and adjustable |
| Volt Free Contacts, Number, and Rating: | 3 x SPCO isolated relays, rated at 5 A at 250 V AC and 1 Solid-state SPNO isolated relay, rated 30 V at 100 mA, suitable for pulse counter applications |
| Options | |
|---|---|
| Option: | Description: |

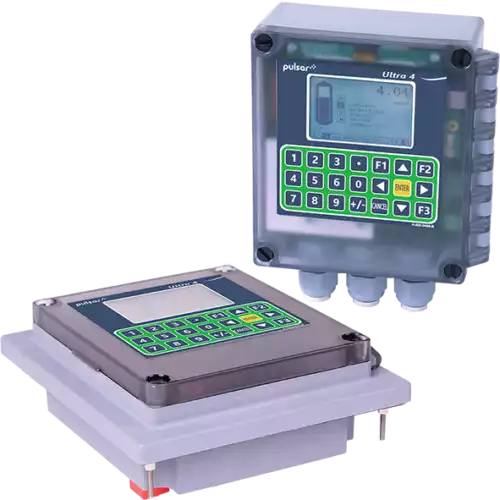

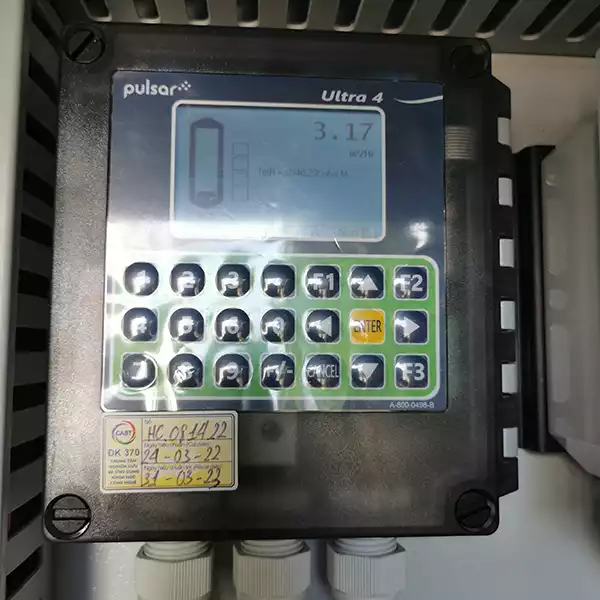

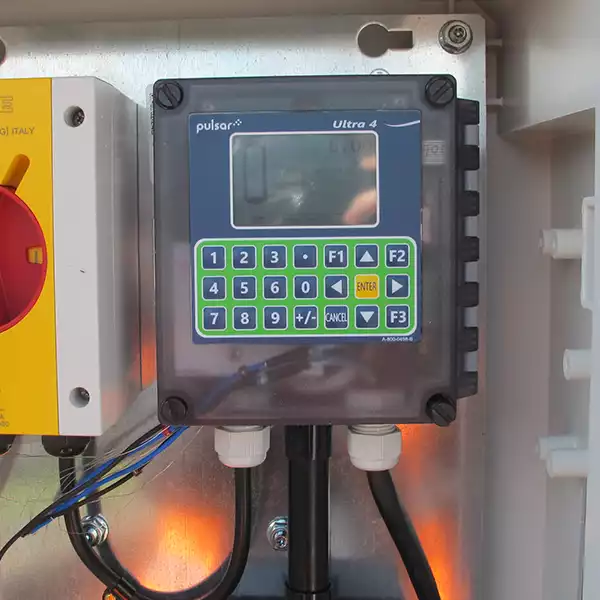

| Wall mount | For permanent installations, Ultra 4 can be mounted to a nearby wall |
| Fascia mount | For permanent installations, Ultra 4 can be fascia mounted for easy integration with panels |
| Communications | RS485 Modbus (opto-isolated) Profibus and Data Logging Option - V1 (opto-isolated) HART Version 7 / mA Output (opto-isolated) |
| Adaptor Plates | Adaptor plates available for easy replacements within panels |
Approvals
- CE Approval
- UL Approval (pending)
- MCERTS (pending)
- IP67 Wall Mount
- IP64 Fascia Mount
