Flow Monitor Fixed Installation For Pipe Flow Monitoring
- 22-28 V DC and Universal 85-264 VAC supply output for FlowPulse
- Flow/speed display
- Installing the FlowPulse sensor
- Two programmable relays for control and alarm
- Log system / resettable totalizers
- Registration, installation and downloading with optional software

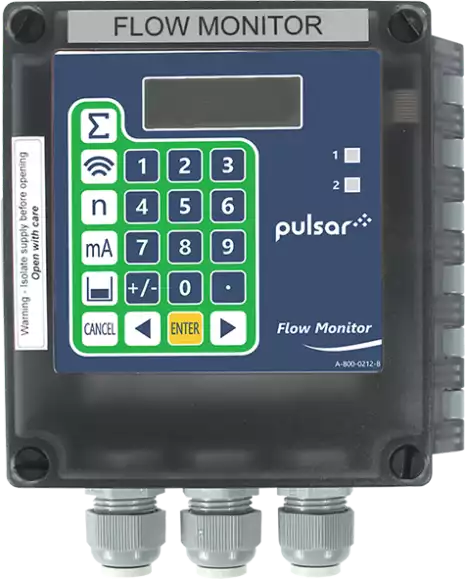

Flow Monitor:
It is a dedicated wall-mounted device for use with Pulsar's FlowPulse flow sensor in fixed or permanent installations. The flow monitor can be powered by AC or DC and is connected via a FlowPulse 4-core cable. The flow monitor increases the capability of the FlowPulse sensor with 2 relays that can be programmed as an alarm relay or a flow/speed control relay.
Alternatively, the relay can be programmed as a collector. The monitor also provides a mA output and daily total recording, including daily total, giving you greater control over your trading system. Typically records 36 days of flow at 1 minute intervals (uses optional recording software). The handy backlit LCD screen provides a clear indication of flow rate and rate of flow, and the menu can be programmed via a set of function keys.
Scope of application:
• Monitoring Flow in Pipe
• Inlet Pipe Flow
• Process Waste
• Leachate Pipe Tracking
• Pump/Process Efficiency and Asset Monitoring
• Monitoring Flow in Pipe
• Inlet Pipe Flow
• Process Waste
• Leachate Pipe Tracking
• Pump/Process Efficiency and Asset Monitoring
Genel Özellikler
Controller Body Dimensions: 130 mm x 150 mm x 63.5 mm (5.12 in x 5.9 in x 2.5 in)
Weight: 0.65 kg (1.42 lbs)
Housing Material: ABS base with polycarbonate cover, flammability rating UL94HB
Maximum Separation: 500 m (1,640 ft)
Max and Min Temperature (Electronic): -20°C to +50°C (-4°F to +122°F)
Operating Voltage: 85-264 V AC 50/60 Hz, 22-28 V DC
Power Consumption: 10W maximum power (typically 8W)
Options
Explanation:
FlowPulse Sensor: From outside the pipe streaming monitoring
FlowPulse HandHeld Controller: Portable flow monitoring
Approvals
IP66 / 67
CE Approval
