Doppler Flowmeter DFM5.1

Doppler Flowmeter DFM5.1:
It measures the flow rate of dirty or aerated liquids such as wastewater, chemicals, acids, muddy water, corrosive and viscous liquids. Recommended for all liquids containing solids and air bubbles and for fully filled pipes.

Doppler Flowmeter DFM 5.1, 12.7 mm / ½ inchç. It is mounted on the outer surface of larger diameter plastic or metal-based pipes. To measure flow, the acoustic signal is reflected back to the sensor from particles or gas bubbles moving in the liquid. Installation is easily done without shutting down the flow system. There is no contact with the moving liquid. There is no need for pipe cutting and pipe drilling. There is no contamination or sediment or tartar accumulation on the sensor.
Doppler Flowmeter DFM 5.1; It includes an ultrasonic sensor, 5-button calibration system, large digital display showing flow rate and total amount, isolated 4-20mA analog output and two programmable control relays. Datalogger and intrinsically safe sensor are optional.

Easy Calibration:
Doppler Flowmeter DFM 5.1 includes user-friendly calibration. Selection of pipe diameter and measurement units is made from the keypad of the device. You can easily adjust your flow meter a few times. You can calibrate it in minutes.

Easy Installation:

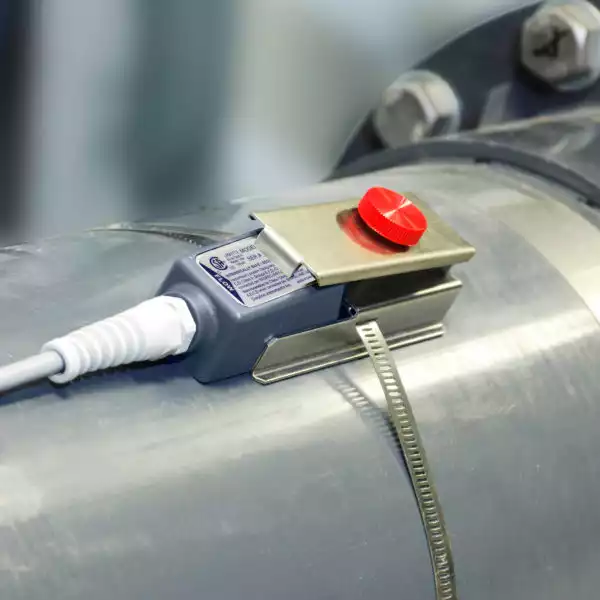

Each Doppler Flowmeter DFM 5.1 comes with a clamp-on ultrasonic sensor, adjustable stainless steel mounting clamp and acoustic coupler gel. The sensor can be mounted on the outer surface of any pipe with a diameter of 12.7 mm (½”) or larger. Installation takes just a fewç It takes minutes. There is no need to interrupt the flow.
