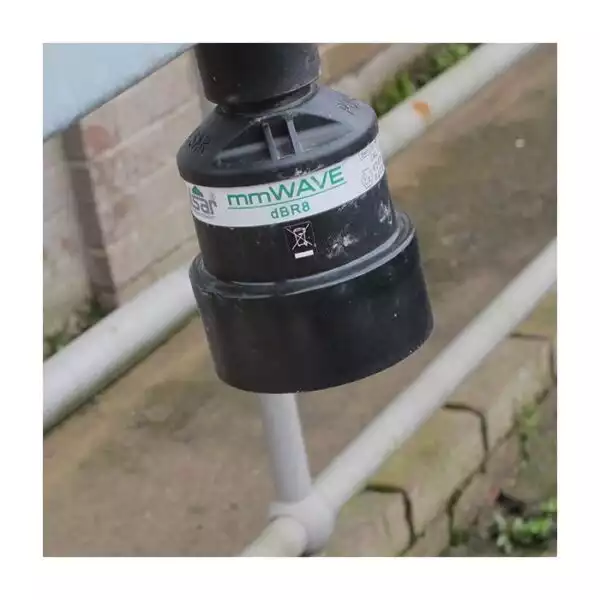

Non Contacting Radar Transmitter mmWAVE
• Foamy Applications
• Application’s Subject To High Electrical Noise
• Atmospherically Volatile Applications

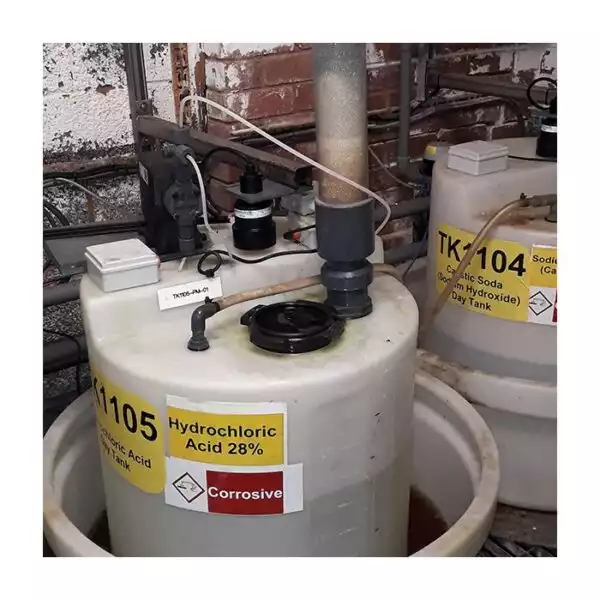

• Chemical Dosing Plants & IBC’s

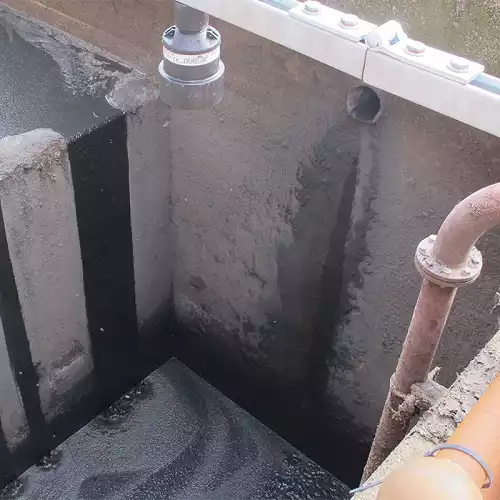

• Digester Level Monitoring
Our Radar technology is complementary to the ultrasonic range from Pulsar. Giving those ‘difficult’ criteria applications an extra option. Radar is perfect for those kinds of applications where there are changing atmospheric conditions or heavy vapors or fumes. Thanks to Linear Frequency Modulation (LFM) processing, our FMCW Radar technology has a strong signal to noise ratio and excellent resolution, giving it significant advantages over pulsed Radar systems. As with all sensors from Pulsar Measurement, the Radar sensor is retrofittable to all Pulsar Controllers, so whenever your application needs change, your instrumentation can change with you at a minimal cost.
• Foamy Applications
• Application’s Subject To High Electrical Noise
• Atmospherically Volatile Applications
• Chemical Dosing Plants & IBC’s
• Digester Level Monitoring
| General Specifications | |
|---|---|
| Spec: | Description: |
| Dimensions | Nominal 130 mm H x 90 mm D (5.11 in H x 3.54 in D) |
| Weight | Nominal 1.1 kg (2.4 lbs) |
| Frequency | V-band |
| Sensor Body Material | Valox 357U |
| Mounting Connection | 1 in BSP or NPT |
| Enclosure Protection | IP68 / NEMA 6P |
| Operating Temperature (Electronics) | -40 °C to +80 °C (-40 °F to +176 °F) |
| Process Pressure | -1 bar to +4 bar (-14.5 psi to 58 psi) |
| Options | |
|---|---|
| Option: | Description: |

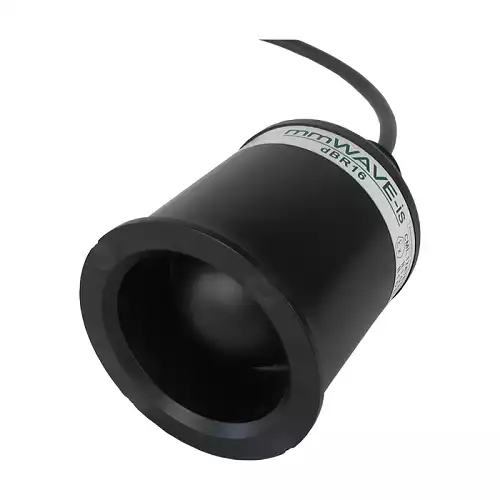

| Variants | dBR8, dBR16 |
| Accessories | Additional Aiming Kit |
| Cable lengths | 5 m, 10 m, 20 m, and 30 m (16 ft, 32 ft, 65 ft, and 98 ft) |

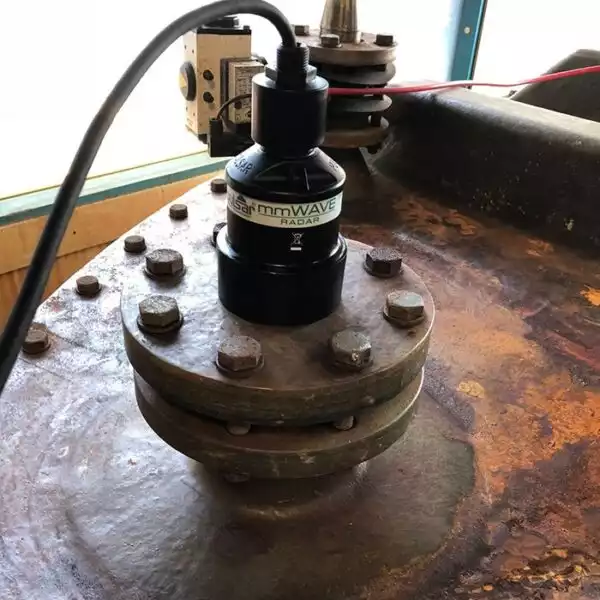

| Flange Options: | 2 in, 3 in, 4 in, 6 in, or 8 in ANSI flanced, PTFE faced 50 mm, 80 mm, 100 mm, 150 mm, or 200 mmm DIN flanged, PTFE faced |
Approvals:
- IP68
- CE Approval EN61326-1-2013 for emissions and immunity
- CE Approval EN302-729-2016 for radar emissions and immunity
- ATEX Zone 0 (Ex ia): Ex II 1 G Ex ia IIC T4 Ga Ta = -20 ºC to +80 ºC, Ex II 1 D Ex ia IIIC T135 ºC Da Ta = -20 ºC to +80 ºC
- ATEX Zones 1 & 2: Ex II 2 G Ex mb IIC T4 Gb, Ex II 2 D Ex mb IIIC T135 °C Db Ta = -20 ºC to +80 ºC
